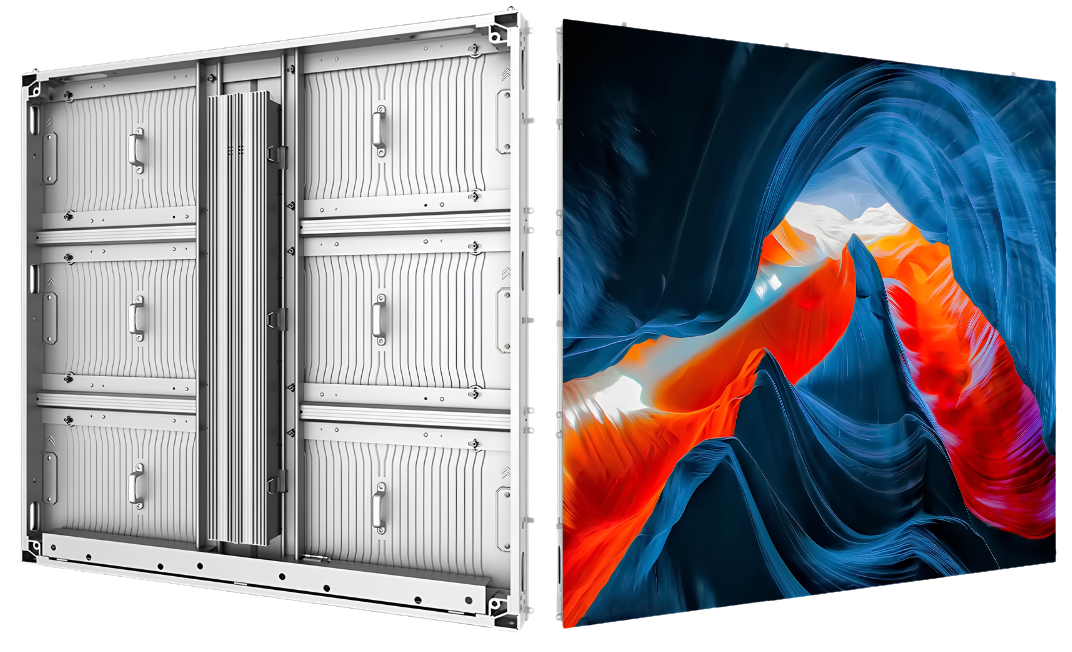

Outdoor LED Displays

Outdoor LED Displays
Outdoor LED Displays
Outdoor LED Displays deliver exceptional brightness, weatherproof durability, and vibrant visuals for billboards, building facades, highways, stadiums, and public spaces. Designed for 24/7 operation, these high-performance LED screens provide outstanding visibility in direct sunlight, seamless installation, and reliable performance for outdoor advertising and digital signage applications.
Get Price on WhatsApp Download Brochure

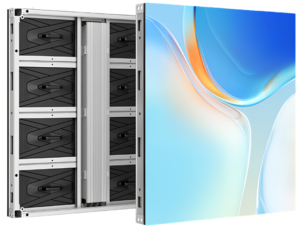

Outdoor Billboard LED DisplaysPremium DOOH LED Displays
Ideal for:
  • LED Billboards
  • Highway Advertising
  • Commercial Buildings
  • Retail Advertising
  • Public Information Displays
Ideal for:
  • Digital Out-of-Home (DOOH)
  • Shopping Malls
  • Airports
  • Transit Hubs
  • Smart City Projects
  • High-End Digital Signage
Technical Specifications
  • Pixel Pitch: P4.44 / P5.7 / P6.67 / P8 / P10
  • Brightness: 6,000–15,000 nits (model dependent)
  • Refresh Rate: 3840Hz
  • Cabinet Size: 960 × 960 × 78 mm
  • Cabinet Weight: 25 kg
  • Protection Rating: IP67 Front / IP66 Rear
  • Viewing Angle: 160° Horizontal / 140° Vertical
  • Maintenance: Front & Rear Access
Technical Specifications
  • Pixel Pitch: P2.94 / P4 / P6.25
  • Brightness: Up to 10,000 nits
  • Refresh Rate: 3840Hz
  • Cabinet Size: 800 × 900 × 90 mm (16:9)
  • Cabinet Weight: 19.5 kg
  • Protection Rating: IP65
  • Viewing Angle: 160° Horizontal / 140° Vertical
  • Maintenance: Front & Rear Access

Specifications

Pixel Pitch Options P2.94 / P4 / P6.25
High Brightness Designed for excellent visibility in direct sunlight
Refresh Rate Up to 3840Hz
Die-Cast Aluminium Cabinet Lightweight and precision engineered
16:9 Cabinet Design Ideal for Full HD, 2K & 4K video walls
Maintenance Front & Rear Service Access
Protection Rating IP65 Outdoor
Viewing Angle 160° Horizontal / 140° Vertical
High Gray Scale 14bit–16bit for smooth colour transitions
Operating Temperature Suitable for all-weather outdoor environments
Seamless Cabinet Alignment Precision locking system for flat video walls
Applications Digital Out-of-Home (DOOH), Shopping Malls, Airports, Metro Stations, Smart Cities & Premium Outdoor Advertising

Product Videos

Frequently Asked Questions

What are Outdoor LED Displays used for?

Outdoor LED Displays are widely used for digital billboards, roadside advertising, building facades, shopping malls, stadiums, public information displays, transportation hubs, and large-scale outdoor branding.

Are Outdoor LED Displays waterproof?

Yes. Outdoor LED Displays are designed with high IP-rated protection to withstand rain, dust, humidity, and harsh weather conditions, ensuring reliable performance throughout the year.

Which pixel pitch is suitable for outdoor LED displays?

The ideal pixel pitch depends on the viewing distance. P4.44 and P5.7 are suitable for closer viewing, while P6.67, P8, and P10 are ideal for large billboards and long-distance visibility.

Can Outdoor LED Displays be viewed in direct sunlight?

Absolutely. High-brightness LEDs provide excellent visibility even under direct sunlight, making them ideal for outdoor advertising and public display applications.

Can the display operate continuously?

Yes. Commercial-grade Outdoor LED Displays are designed for 24/7 operation and are built to deliver stable performance in demanding outdoor environments.

What maintenance options are available?

Most Outdoor LED Displays support both front and rear maintenance, allowing technicians to service LED modules, power supplies, and receiving cards efficiently based on the installation requirements.

Can the display be customized to any size?

Yes. The modular cabinet design allows Outdoor LED Displays to be configured into virtually any screen size or aspect ratio, making them suitable for projects of all scales.

How long does an Outdoor LED Display last?

With proper installation and regular maintenance, a high-quality Outdoor LED Display can provide up to 100,000 hours of reliable operation.

What content can be displayed on an Outdoor LED Screen?

Outdoor LED Displays can showcase advertisements, promotional videos, live broadcasts, public announcements, event coverage, branding content, real-time information, and other multimedia content.

How do I choose the right Outdoor LED Display?

Choosing the right display depends on factors such as viewing distance, installation location, screen size, ambient lighting, content requirements, and budget. Our team can help you select the ideal pixel pitch and display configuration for your project.
